主要用途与详细介绍/Brief Introduction：

超声波焊接机组为10-20ml服食液液體包装生孩子方式线中的常见机 。是由洗瓶、烘干阶段箱集成机和包装塑封集成机所构成的，能自動进行服食液瓶的洗瓶、烘干阶段箱、包装和塑封等动做，是服食液生孩子方式制造厂家更满意的模块化机 ，彻底包含GMP条件。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

结构特征/Characteristic：

◆装量精准，应对漏滴。罐装gps精度不高。High filling accuracy.◆变频器无级变频调速，加工运行速度慢调节器，待选择不同的的加工运行速度慢。Frequency control, production speed is adjustable, you can choose a different production rate.◆很多电器pcb板pcb板均进行进口量高知名度牌子。All electrical components are imported famous brands.◆主动凸显数值的功能。Automatically countting function.◆控住主要包括澳大利亚三凌PLC，抗不干扰，岗位增强。Controlled by Mitsubishi PLC◆性能指标维持，维持养护等快捷。Stable performance, easy maintenance.◆空机外表通常看上去使用SUS304不锈304不锈钢圆管钢板网作、与原料碰触地方使用316L304不锈钢圆管。空机彻底按GMP规范定制。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

水平性能/technical parameters：

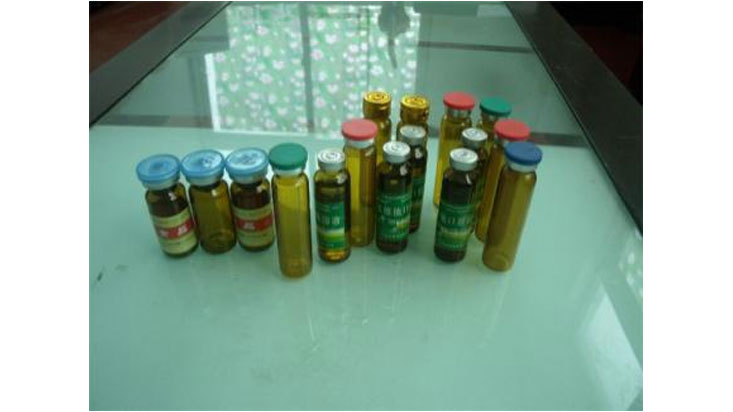

符合规格参数/Bottle size	10-20ml
产出效率/Capacity	60-90瓶/30分钟/60-90bottles/min
烘烤热度/Dryer tempreture	100-300°
回收河水量/Water wastage	0.5m3/h
空气净化水耗量/Purifying water consumption	0.3m3/h
装量要求/Filling precision	≤1%
电源线/Voltage	380V/50Hz
耗油率/Power	33KW
的生产工艺总长/Dimension	3500×1500×1600mm
