应用与介绍/Brief Introduction：

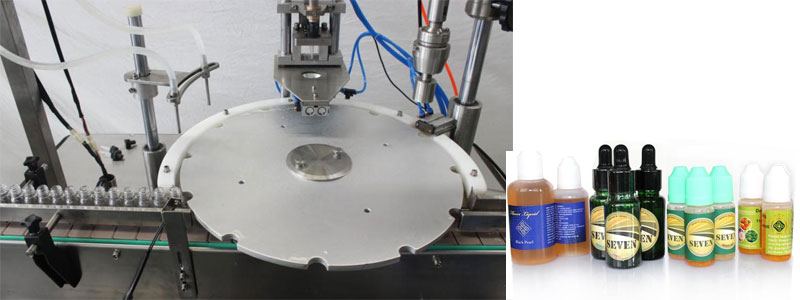

超声波焊接机符合于2-30ML各项才质的圆型扁形朔胶或玻璃纸瓶的眼药粉包装.超声波焊接机由高高精准度轴承构造量程构造可以具备量程等分盘位置上塞上盖;会加快度轴承构造齿轮传动链可以具备旋盖头的生降;恒转距旋盖;消化吸收泵的计量校准包装;触碰屏调整.无瓶不包装,不用内塞,外盖.具位置精度,齿轮传动链平衡,确保瓶子,的计量校准准.运作简单化等优缺。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

显著特点/Characteristic：

◆微网吧电脑添加、装量精准、方法方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机带速可实行变频柜变频柜变速。the mainframe running speed is stepless frequency conversion.◆生产加工量自動一定量操作。the product quantity can be controlled. ◆几种出现故障系统提示功能模块(如低汽压。无装灌、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆系统自行宕机作用，对某一路轨现身间断性无分装、无内塞情况报告可系统自行宕机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

工艺规格/Main Technical Parameters：

适用性型号Filling Volume	2-30ml
研发作用Productivity	30-60瓶/分  7🎀0-100瓶/分30-60bottles/min    70-100bottles/min
罐装计算精度Filling Precision	≤±1%
电源模块 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
手动上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
功效 Power	2.0 kw
机械毛重Weight	550 kg
看上去长宽Dimension	1800*1000*1500mm
