用处与简单介绍/Purpose and introduction：

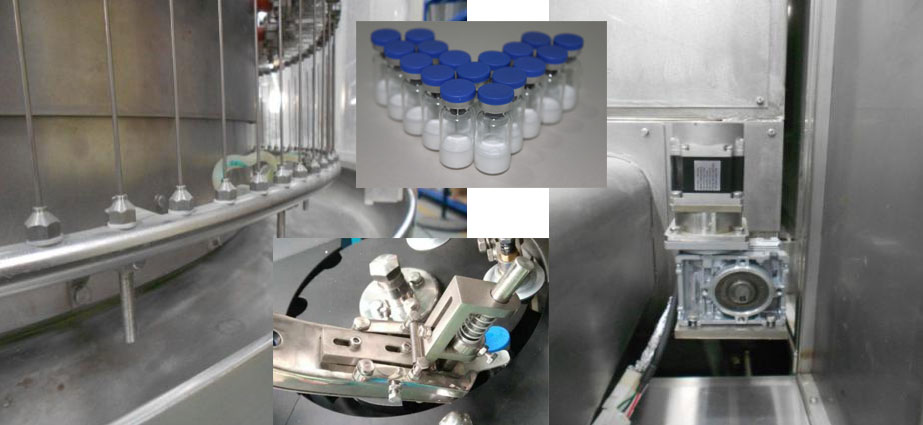

NQGF型西林瓶粉针洗烘预包装轧盖标贴纸互通线 由QCL产品系列产品立柱式彩超波洗瓶机、AQMR铁路隧道式热气循坏往复消毒风干箱、NQFGX产品系列产品加工中心丝杠粉剂预包装机、NQ-50轧盖机、NQWTB-120标贴纸飞机机组成，也可手机单机应用。好于7-25ml规格型号的西林瓶粉针的生產。能成功喷淋系统灌水、彩超波粗洗、瓶侧壁水擦洗、瓶表面陆续2次循坏往复水擦洗、一些吹气、一些新鲜松茸水擦洗、陆续2次吹气、瓶侧壁吹气、擦拭、暖机、风干消毒去热原、冷凝、预包装、加塞、轧盖、标贴纸等二十来道生产工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特征/characteristic：

◆洗瓶机按照机制手夹瓶，不适用许多尺寸规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶通过水蒸汽喷针导杆跟踪软件复制的方法，家电清洗治疗效果最好的，节省电力能源。并设置针架防抽动保护装置，上升喷针复制玻璃瓶的准确性度，提高断针想象遭受；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶另一热气线路、喷针完整独力分开用，减少了交叉点影响，契合GMP管理规范耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺栓前加装有保护好块，有保护好挤出机螺栓，减小碎瓶的作用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶适用整体结构进囗的同步软件带，连入拨瓶块输送管西林瓶，行驶维持靠谱；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱按照自动空调重复高温，温度因素竖直，节约能源；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆干燥箱配有防突发没电确保功用。运动防护；Mixer oven has suddenly loses power protection function. Run security;◆烘干箱可配配置水冷式部件，不材料耗费屋子里功率，可以减少屋子里的压值不稳定的可能性温度下降治疗较好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆恒温干燥箱可配压值大定时取舍调准模式提高主卧室和恒温干燥箱的压值大不取舍导致的高热段摆动，灌装生产线间洗烘间室温升高的一类型的故障；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆恒温干燥箱不设DOP检查电源接口(分为风压气压、风力、尘埃什么意思塑料颗粒检查口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆真空烘箱冷却塔段可带线消毒实用功能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带超声波牵连CIP再线洗涤系統；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可实行全方法、多偏角髙压水清洗道路；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开装袋机用于展览更最先进的的设计背景，享有高速收费站度，又很分瓶精准，更換规格参数件简单方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆散装机所采用沟通交流伺服主轴电机主轴电机控制器程序散装螺杆式扭动，装量透彻；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开装袋机使用装量的进行调节就直接在手触屏上变现；Mixer packer adopts the load adjustment directly on a touch screen;◆散装机先选配百级无限循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶停下全自动灌装机，无瓶没有加塞基本功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线采用了PLC总设定、直流软启动、触碰屏设定技術，使用安稳靠谱。触碰屏可出现各单机联机的使用状况，各设定点的通水压力、传热系数、传热系数、温等出现，各电源开关状况和机械报警出现，机械报警个人能力检测和机械报警数据分析及解决措施。使一小部分加工的过程 超过定时化设定，联线兼有电气稳定性设备，维持加工多样化靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.只能根据顾客的必须 ，还可供加装音响：According to the needs of customers, but also available for selection:◆西门子模式、德力西、西门子、台达等国际品牌的控制模式；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气阻力、温度及高周波波难度、尘灰a粒子、空气流速上线测试、报警灯、登记、彩印系统化；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌隔绝器控制系统。ORABS, CRABS, aseptic isolator system.

技术水平性能参数：/technical parameters

材质 model

生孩子力量production capacity

洗瓶优秀率Washing bottle percent of pass

洗瓶磨损率Washing bottle breakage

高压蒸汽灭菌湿度sterilizing temperature

包装计算误差The repackaging of error

加塞合适率Gasser percent of pass

废气层流干净干燥度Laminar air cleanliness

真空体抽速Vacuum pumping speed

电解电容量 capacitance

主机电源power supply

总用电量Total transmission energy

外型规格boundary dimension

7-25ML行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
