应用领域与间介/Purpose and introduction

该的加工线由理瓶机(上瓶台)、超声检查波洗瓶机，灌装线(旋盖)加塞机，轧盖机，标贴机等装置主成On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

优势/characteristic：

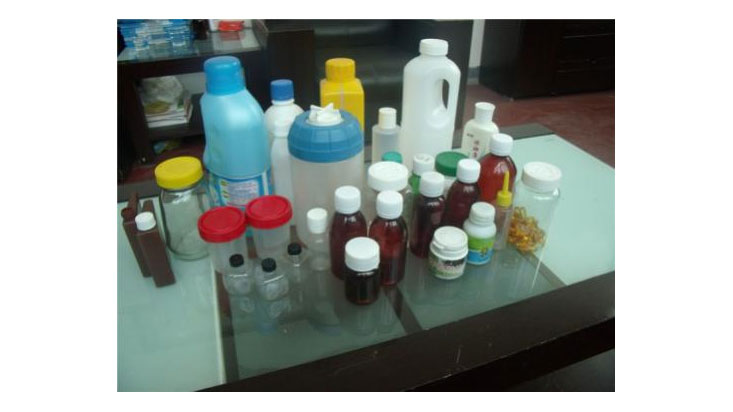

该工作方式线适于 30-500ml型号品牌的灌装设备加塞封膜，更新很多产品规格模貝后，既适于氟塑料罐子，也适于窗户玻璃酒瓶。更具应用范围之内广泛的，更改简单的特色。整线工作方式水平；适罐子尺寸大小形状图片大全，食品动力粘度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

技术应用运作/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶净化度Washing bottle cleanliness(%)	> 99
装量出现偏差的原因The load error(%)	0-2
上塞合理率Plug on the percent of pass(%)	> 98
轧盖合格达标率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
