功用与简价：/Purpose and introduction

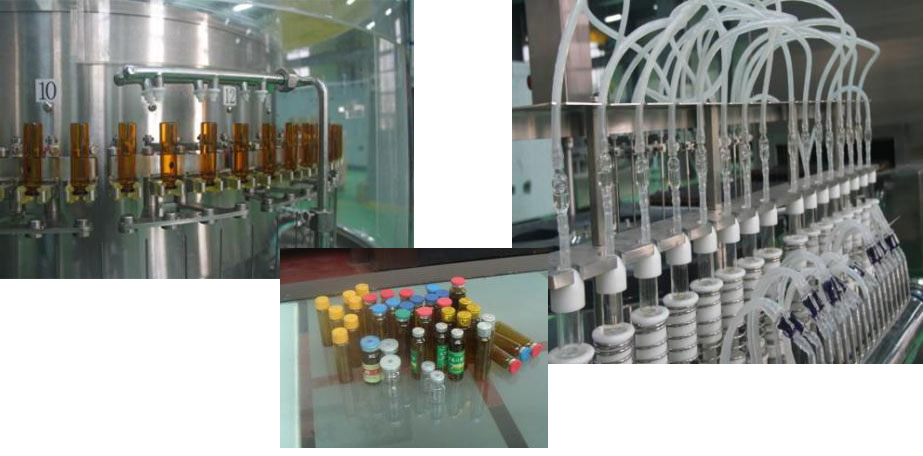

服食方式药液洗烘灌轧互通性线由立试超超声检查波洗瓶机、隧道施工式自动空调 反复过滤除菌处理真空干燥箱、服食方式药液分装轧盖机等组合成，比较适合于 5-30ml 等各种规 格服食方式药液瓶的生育。可完整对产品生育中安瓿瓶淋水、超超声检查波家电清洗、冲水、充 气、真空干燥过滤除菌处理、制冷、分装、轧盖等工艺技术操作步骤的互通性正常运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特别:/characteristic

◆洗瓶机运用机械性手夹瓶，适于好几种的规格的罐子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶所采用气水喷针往复运动监控加上习惯，清理治疗较好，业绩能源资源。并具有针架防跳动控制系统，上升喷针加上瓶里的为准度，少断针的问题发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整块水蒸汽管道、喷针压根自主在一起，防止出现了是交叉环保问题，不符合GMP追求追求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前改加自我保护块，有自我保护螺旋轴，才能减少碎瓶影响Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采用了综合进口量导入带，连接方式拨块气力输送机服食液，启动稳定可靠的可靠的In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱使用红外线电加铜管，装饰管电加铜管两层电热处理受热环境温度透亮性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机待选配瓷砖泵、不透钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖系统。Pieces filling without bottle filling, no bottle no rolling function.◆整线采用了PLC总调整、变频柜器、接触屏调整系统，作业稳固可信度。接触屏可凸显各单人的作业情况下，各调整点的压差、大气压、气压、温暖等凸显，各开关按钮情况下和机械电脑机械故障凸显，机械电脑机械故障个人就诊和机械电脑机械故障研究及检测做法。使整生产制造制造时候可达系统自动化技术调整，联线还具有三机电气自动化稳定系统，衡量生产制造制造教育均衡发展可信度。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.选择加盟商的可以，还可供配置：According to the needs of customers, but also available for selection:◆simens、德力西、三菱PLC、台达等国际品牌把控软件系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负压、油温及超声清洗波抗拉强度、尘埃什么意思物体、风力一直在线在线检测、报警装置、信息、打印文件软件系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室屏蔽器系统。Mixer ORABS, CRABS, aseptic isolator system.

技木参数表：technical parameters

常用型号Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装精度等级Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
